L-CAT EVO-Ⅱ

L-CAT EVO-Ⅱ

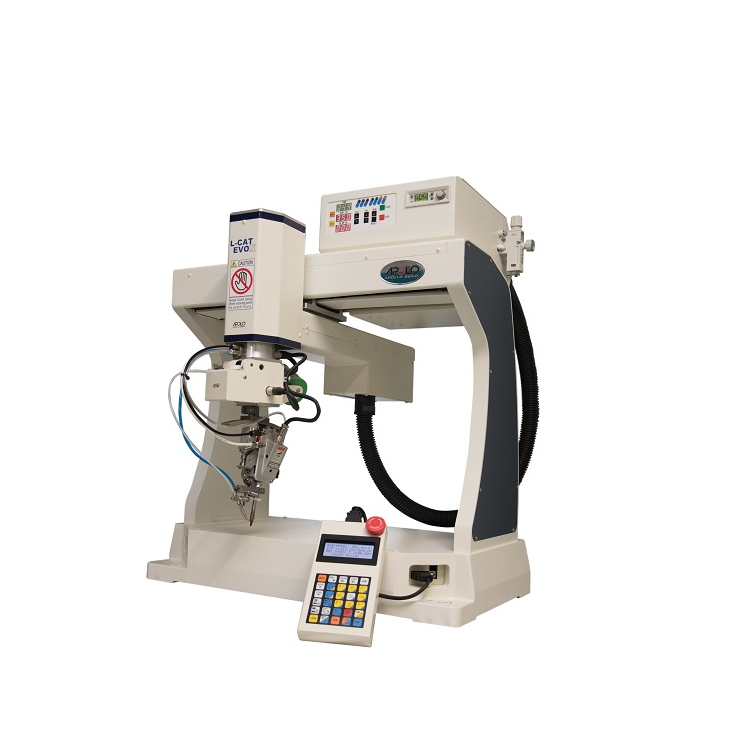

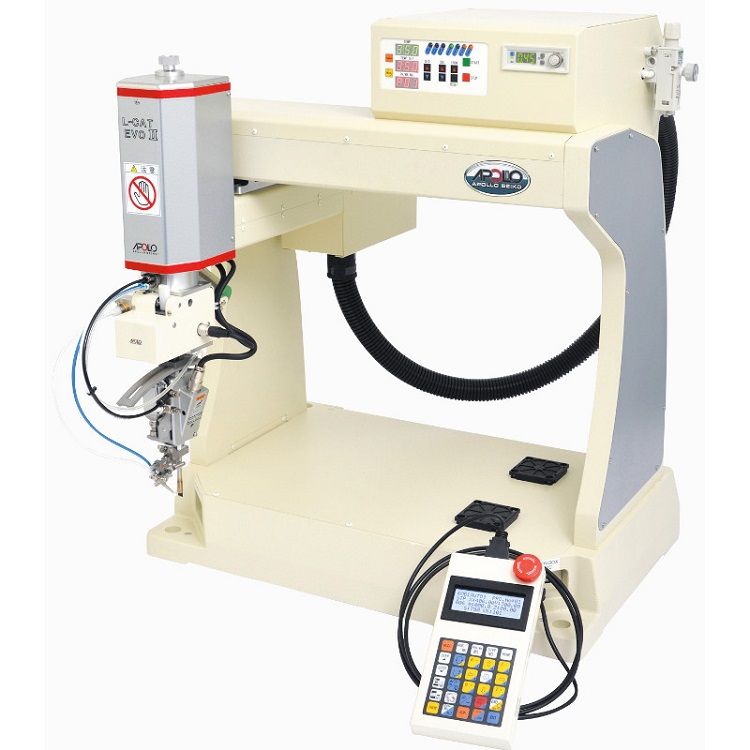

L-CAT EVO is a model that has been sold for a long time. After improvement and upgrade, it was renamed L-CAT EVO II. In addition to maintaining the ease of operation of the series, the new model also adds I / O communication ports and the ability to connect to Ethernet networks.
L-CAT EVO II strengthens the stability and reliability of the X / Y / Z / R movement axis, and has a memory capacity of 100 programs and 100,000 steps, which can meet almost all PCB welding needs. The adopted high-precision rotary encoder enables the X-axis and Y-axis drive motors to achieve an accuracy of 0.01mm (repeat accuracy of 0.02mm) and a maximum movement speed of 750mm / sec.
‧The only cantilever automatic soldering machine in the world
The design of four-axis (X, Y, Z & R) hanging on the platform makes the design of the fixed fixture simpler, and it is easy to integrate with the conveyor belt, manual loading, and the double slide platform in series. Because the product can be fixed on another base, the device operation is no longer affected by the size and weight of the fixture and the length of the cable and wire harness.
‧Flexible solder parameters can be freely edited
In general, the editing order of solder parameters is fixed. However, L-CAT EVO II has a set of freely editable solder parameters that can be customized to meet the user's specific application needs. Applications such as high thermal energy, fine-pitch devices, and both large and small solder joints can be solved by self-editing parameters.
